Miura M20 Device user guide

Everything you need to get set up.

Here’s everything you need to know to get Mobile Pay up and running.


What’s in the Box?

  • A Bluetooth card reader
  • A micro USB charging cable


What You’ll Also Need?

  • A Global Payments card processing facility
  • A mobile device, for example, a smartphone or tablet with a data plan or Wi-Fi access
  • The Mobile Pay App
  • Your Mobile Pay welcome email

How to Get Started?

  1. Charge the Card Reader

    Plug the enclosed USB charging cable into the USB port on the card reader (see feature 3 on the image) and connect it to a USB power source. A full charge will take approximately three hours.

  2. Download and Install the Mobile Pay App

    Download the app from the link included in your welcome email or by searching ‘Mobile Pay by Global Payments UK’ on the App Store®, Google Play or the Amazon App Store.

  3. Activate Your Account

    Open the Mobile Pay App and click Activate Account’. Here you’ll enter the 5-digit activation code you received in your welcome email to complete the activation process. Then follow the prompts to set up your password and security questions.

  4. Pair the Card Reader



    Make sure Bluetooth is enabled on your mobile device.

    1. Press the Power button (feature 12) on the card reader to turn it on.
    2. Open the Settings menu on your mobile device and go to the Bluetooth section.
    3. Press and hold the Enter key (green tick – feature 9) on your card reader until the Bluetooth icon on the screen flashes rapidly.
    4. Select the card reader from the located devices and then tap Pair. The Bluetooth icon on screen will return to a slow flash when pairing is complete.
    5. Open the Mobile Pay App and select the More icon in iOS or the Menu icon in Android
    6. Select Settings and then Card Reader
    7. Select the relevant Card Reader from list of Bluetooth Card Readers.

    Note: The card reader should come into ‘Ready to Pair Mode’ with the Bluetooth icon flashing once per second. If the Bluetooth icon on the screen isn’t flashing, press and hold the Enter key (green tick - feature 9).

  5. Accept Payments
    1. Create a sale via the Mobile Pay App
    2. Insert, tap or swipe the card or payment device to accept payments.

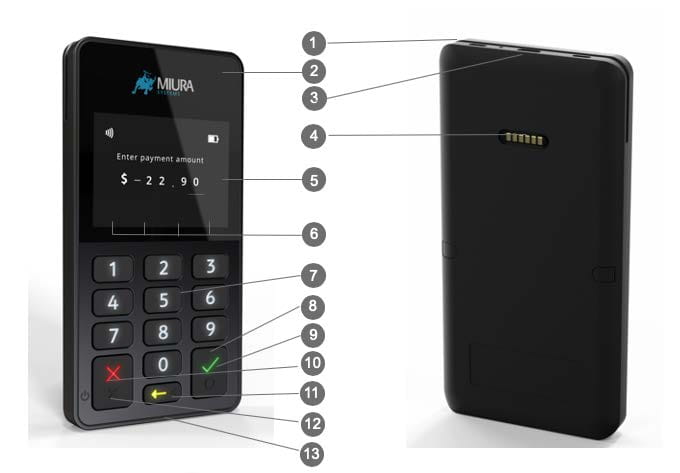

Payment Device Features

  1. Magstripe card reader
  2. Charging LED (red/green)
  3. USB connector
  4. Charging cradle contacts
  5. Colour TFT display
  6. NFC Indicators
  7. Keypad
  8. Enter Key
  9. Function key for Bluetooth and WiFi
  10. Clear key
  11. Cancel key
  12. Power button
  13. Chip card reader

For Support:

  • Call 0345 702 3344*
  • In the Mobile Pay App, go to More/Help/
